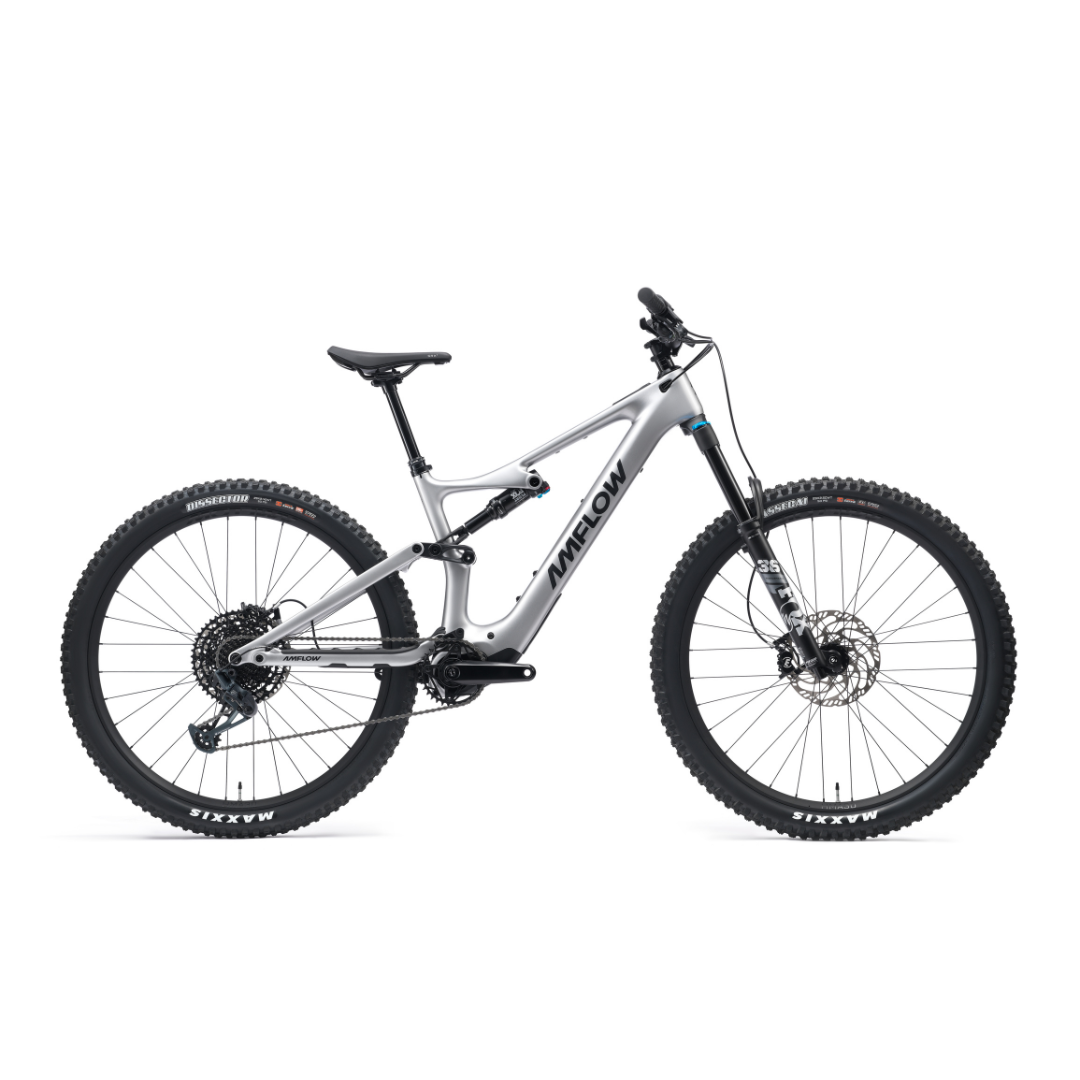

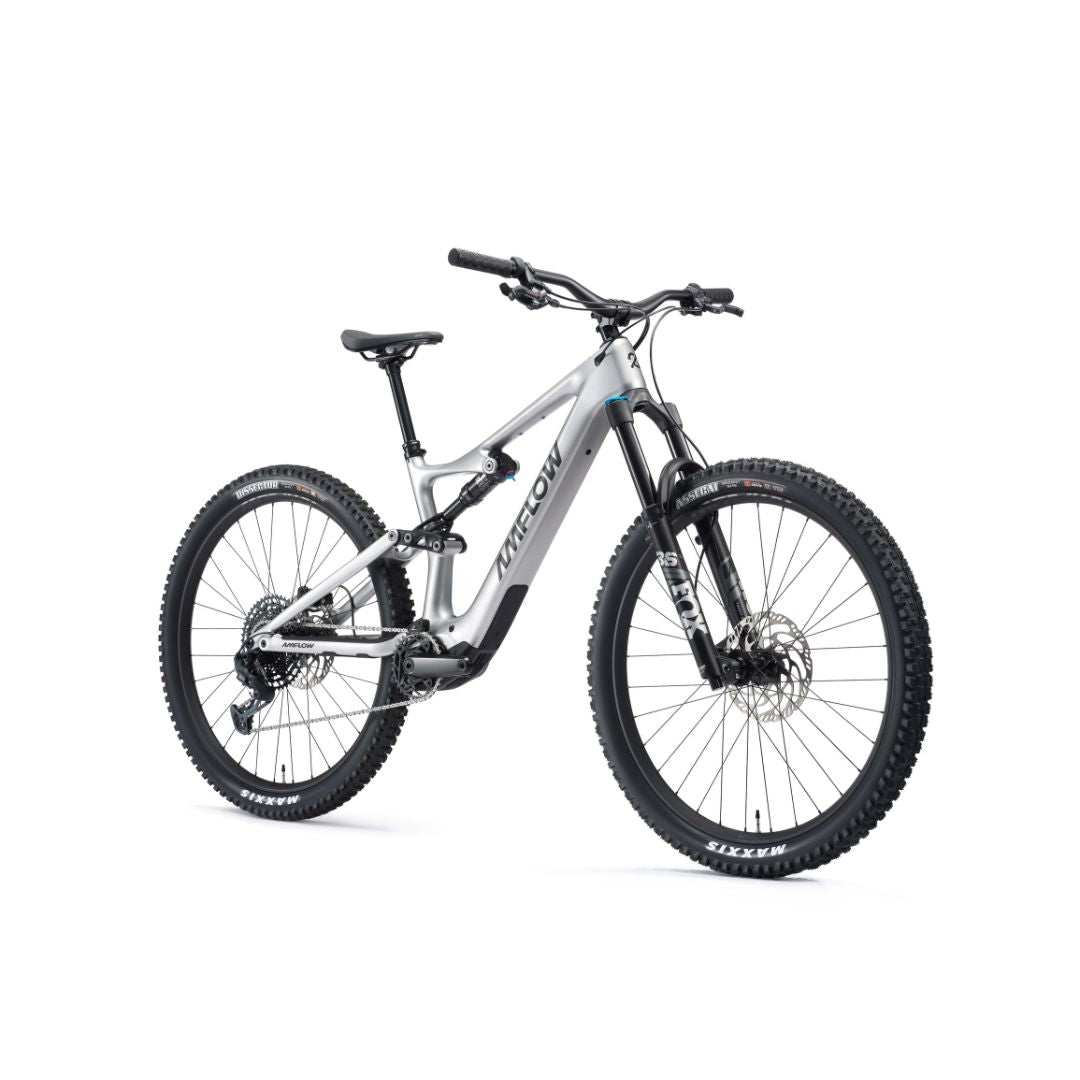

AMFLOW PL CARBON (800Wh)

$9,399.00
By THE BIKE SHOP QLD
Size
1 in stock
Shipping and Delivery

Bikes are only available for in-store collection only.

Free Shipping on orders over $150 (excludes Bikes & oversized items) AUS only.

$30 Flat rate Express Shipping option available for non-bulky items. Usually delivered the next business day (Metro Areas) AUS only.

Same Day Dispatch on orders before 2pm (excludes bikes).

Delivery times will vary from 2-5 business days for metro areas and 7-14 business days for rural and remote areas.

FRAME

  • Amflow PL Carbon Frame
  • Satin Silver
  • 150mm rear travel
  • Compatible with 27.5" and 29" rear wheels

E-Bike System

  • Avinox M1 Drive Unit: 105 N·m
  • Avinox Screen: 2-inch OLED Control Display
  • Avinox Integrated Battery: 800Wh
  • Avinox Wireless Controllers: Right and left sides
  • Avinox Fast Charger: 12A/508W

Rear shock

  • FOX Float Performance
  • Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever

Fork

  • FOX 36 Performance
  • 160mm travel, GRIP Damper, 15×110mm, 44mm rake

Transmission

  • Rear Derailleur: SRAM GX Eagle 12-speed
  • Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
  • Shift Levers: SRAM GX Eagle Trigger Shifter｜Single Click
  • Cassette: SRAM PG-1230, 11-50T
  • Chain: SRAM NX Eagle
  • Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

  • Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)

Wheels

  • Amflow HMA-30
  • Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready
  • Spokes: SAPIM E-Light J-bend
  • Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
  • Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T

Tires

  • Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
  • Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Handlebar

  • Amflow Enduro Alloy Handlebar
  • 35mm rise, 800mm wide
  • 5-degree upsweep, 9-degree backsweep

Grips

  • Amflow Enduro Grips

Stem

  • Amflow Enduro Stem, One-piece CNC
  • Length: 35mm
  • Clamping diameter: 35mm

Saddle

  • Selle Royal SRX Plus

Seatpost

  • KS Rage-i
  • M: 150mm
  • L: 170mm
  • XL/XXL: 190mm

Accessories

  • Quick Start Guide
  • Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
  • Shock Pump
  • Front and Rear Lights
